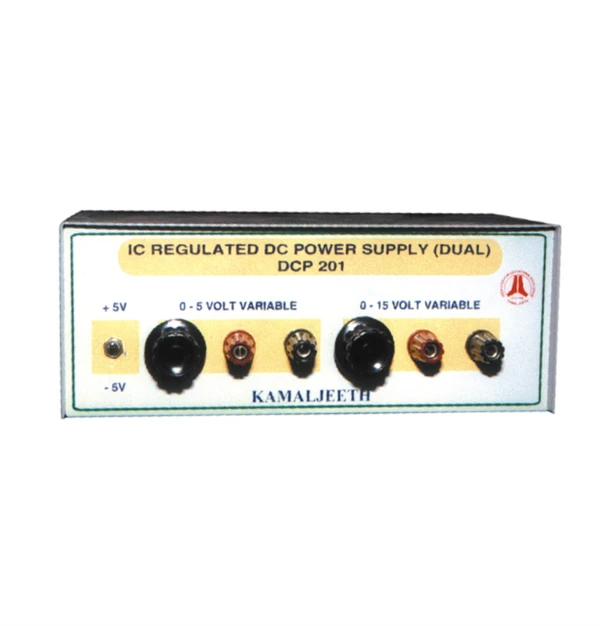

Transistor Characteristics Power Supply

Experiment(s):

Specifications

1 . Transistor Characteristics Power Supply

                    Rated Input: 220 V/50 Hz or 110 V/60 Hz
Output: Dual channel 0-5V/1A & 0-15V/1A
Socket: 5 A with fuse
Cabinet: Metal
Ripple factor: < 1 mV PP at full load
Line regulation: 1%
Meters: No
Mains cord: 3 Pin
