Reference: Lab Experiments Journal vol-6, No.1, Page-22

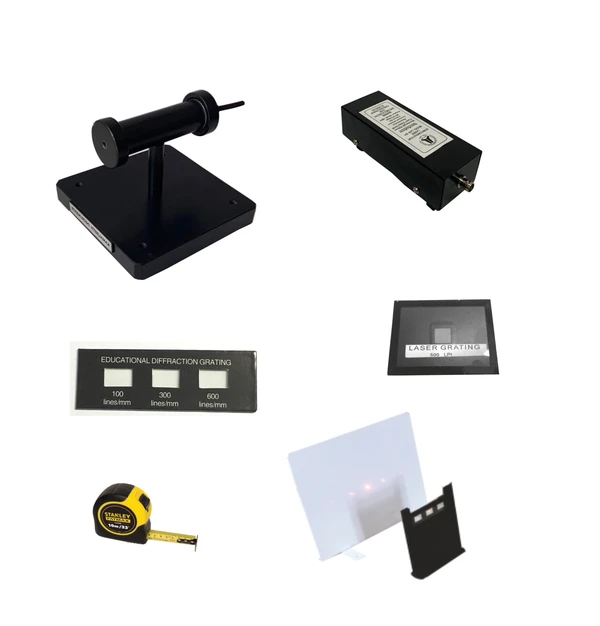

Laser diffraction by grating

Model: LDG-2011

Experiment(s):

Determination of wavelength of Laser / Grating constant

Specifications

1 . Laser

                    Type: Semiconductor diode Laser
Wavelength: 625 nm (Red)
Output power: 3 mW
Mount: Cast iron base with leveling screw

Power supply
Output: Suitable for 3 mW & 5 mW semiconductor Lasers
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Mains cord: 2 pin


2 . 3 in 1 window grating

                    Three different grating suitable for Laser diffraction
100 Lines/mm, 300 Lines/mm & 600 Lines/mm


3 . OR Single window grating

                    Single grating suitable for Laser diffraction of 500 Lines/Inch


4 . Screen & grating holder

                    Metal white screen and grating holder suitable for any standard grating
