Reference: Lab Experiments Journal vol-1, No.1, Page-8

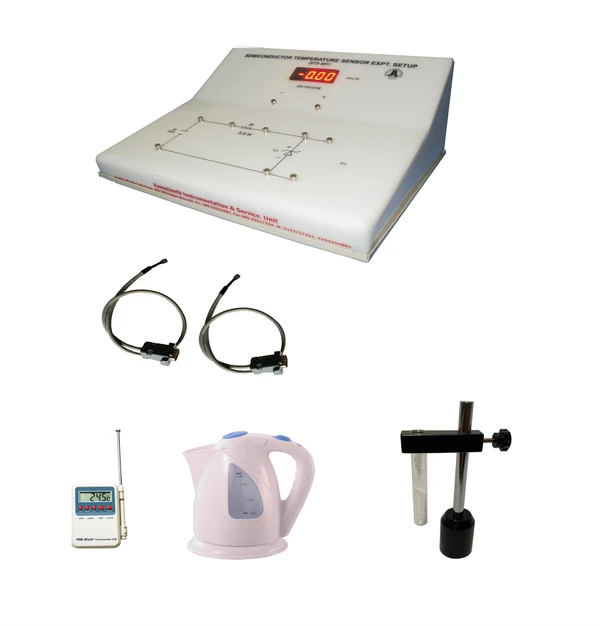

Semi-conductor temperature sensor

Model: STS-501

Experiment(s):

Temperature sensitivity of temperature sensor ICs

Specifications

1 . Semiconductor temperature sensor kit

                    Consists of built-in power supply
5V regulated & short circuit protected
Voltmeter: 0-20 V, 3½ digit, LED display
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power Consumption: <50 W
Cabinet: Acrylic body, aluminium bottom
Connectors: 2 mm - 2 mm molded brass pin patch cords
Temperature Sensor: LM35 and LM335


2 . Digital thermometer

                    Range: 300 °C
Resolution: 0.1 °C


3 . Electric kettle & stand

                    Kettle capacity: 0.5 L
Max. Temperature: 100 °C
Stand: Height adjustable and holds test tube with sample and temperature probe
