Reference:

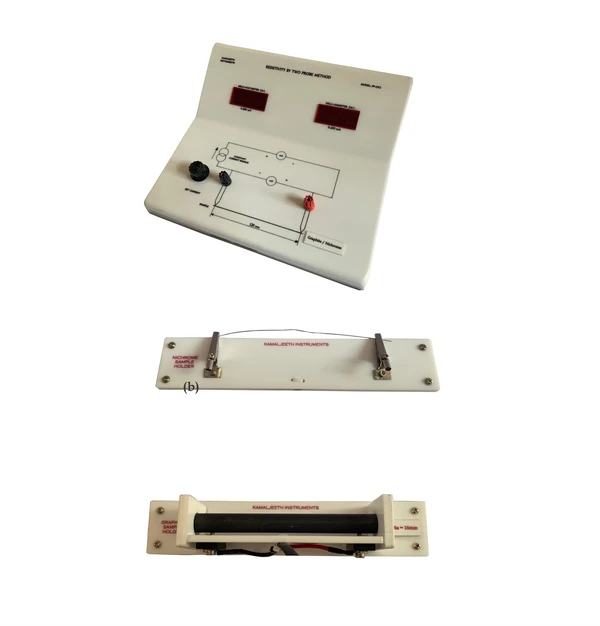

Resistivity by two probe method

Model: FP-1191

Experiment(s):

Determination of resistivity of wire Nichrome and Carbon by two probe method

Specifications

1 . Resistivity by two probe method kit

                    Voltmeter: 0-200 V
Resolution: 0.1 V
Ammeter: 0-200 mA / 0-200uA
Resolution: 0.1 mA / 0.1uA
Source: Built-in constant  current source
Distance between Probes: 120 mm (Fixed)
Samples: Nichrome (provided)
Rated Input: 220 V/50 Hz  or 110 V/60 Hz
Power consumption: <40W
Cabinet: Acrylic body, aluminium bottom

Connectors:
2mm-2mm brass molded  patch cords


2 . Thin wire sample holder

                    Wire Sample holder for diameter 0.2 mm to 8 mm samples


3 . Fixed sample holder

                    Non-changable sample holder provided with Graphite sample of 16 mm
