Reference: Lab Experiments Journal vol-10, No.2, Page-111

Photo-diode characteristics

Model: PD-501

Experiment(s):

Determination of Responsivety, Quantum efficiency & I-V characteristics

Specifications

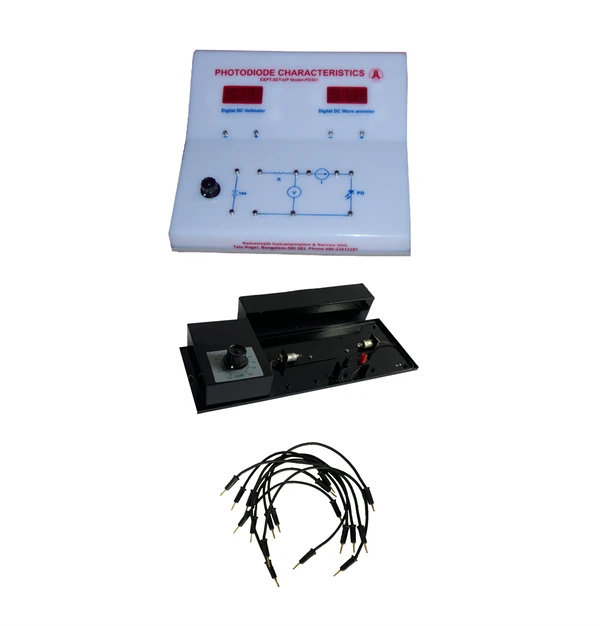

1 . Photo-diode characteristics kit

                    Power supply: 0 - 3 V (DC) variable & regulated, short  circuit protected
Volt meter: Digital DC 3½ digit
Range: 20 V
Resolution: 0.01 V
Current meter: Digital DC 3½ digit
Range: 2000 μA
Resolution: 1 μA
Semi-conductor devices: Photodiode
Rated Input: 220 V/50 Hz
or 110 V/60 Hz
Power Consumption: <50 W
Cabinet: Acrylic body, aluminium bottom


2 . Illumination chamber

                    Independent LED type with variable input power
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <20W

Connectors:
2mm - 2mm brass molded patch cords
