Reference:

Ionization potential of Xenon

Experiment(s):

To draw I-V characteristics of xenon filled Thyraton and determine its ionization potential

Specifications

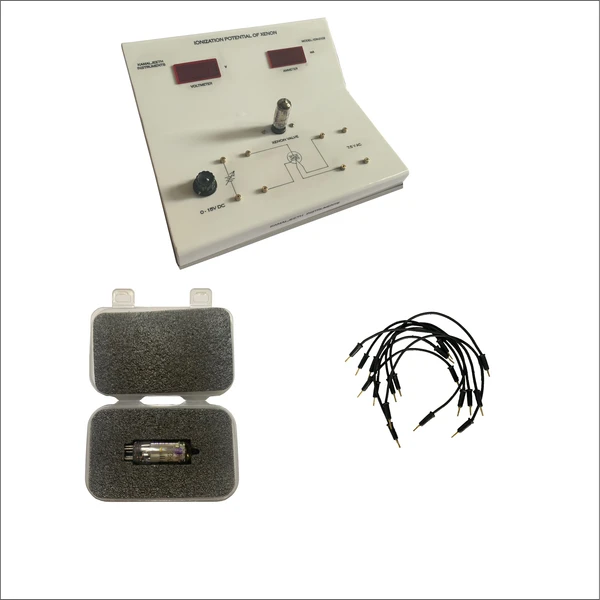

1 . Ionization potential of Xenon kit

                    Power supply: 0-15V DC  variable & regulated, Short-circuit protected
AC power supply: 7.5V AC fixed voltage for filament
Voltmeter: Digital DC 3½ digit
Range: 20V
Resolution: 0.01V
Current meter: Digital DC 3½ digit
Range: 200 μA
Resolution: 0.1 μA
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <50W
Cabinet: Acrylic body, aluminium bottom


2 . Thyraton valve tube

                    Inert gas: Xenon
Heating: Filament type
Heating voltage: 7 V


3 . Patch cords

                    Set of standard 2 mm Patch cords of different lengths with spare cords
