Reference: Lab Experiments Journal vol-7, No.2, Page-95

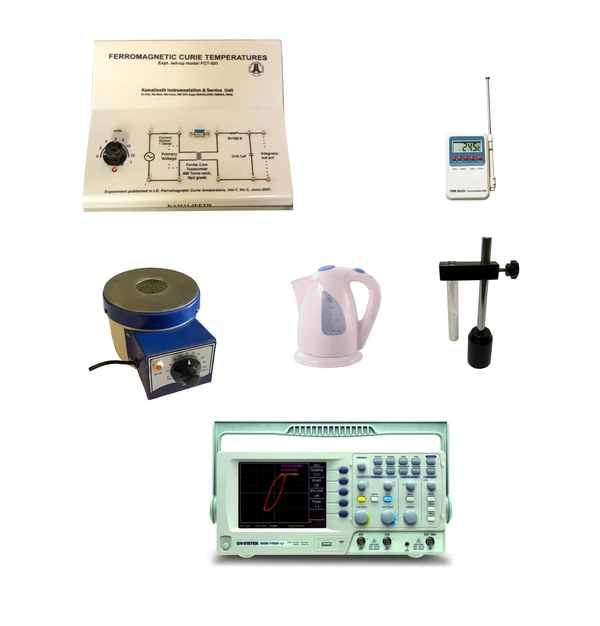

Ferro-magnetic Curie temperature

Experiment(s):

Determination of Curie temperature of HP3 grade ferrite core

Specifications

1 . Ferromagnetic curie temperature kit

                    Coil: Ferrite core copper coils  with 1:1 primary & secondary windings
Power supply: Built in ACsource with voltage selection  from 2 V to 12 V AC
Temperature indicator: Digital  thermometer
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <50 W
Cabinet: Acrylic body, aluminium bottom


2 . Digital thermometer

                    Range: 300 °C
Resolution: 0.1 °C


3 . Electric kettle & stand

                    Kettle Capacity: 0.5 L
Max Temp: 100 °C
Stand: Height adjustable and holds test tube with sample and  temperature probe
OR
Heating: Oven heating up to 200 °C


4 . Digital Storage Oscilloscope

                    Make: GW Instek / HTC / Owon / Hantek
Bandwidth: 100 MHz
Channels: 2
Sampling rate: 250 million samples/sec
Display: 5.7" / 7" TFT Colour
USB PC interface: Yes
Warranty: 1 year
