Diode & Zener-diode characteristics

Reference: Lab Experiments Journal vol-1, No.1, Page-20

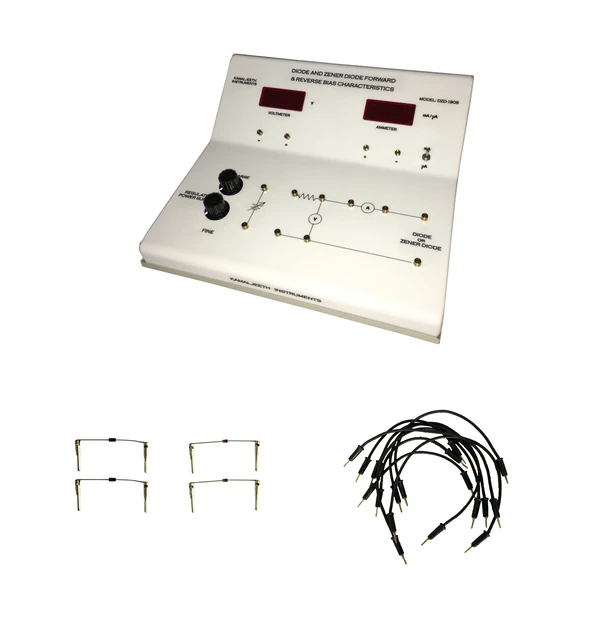

Diode & Zener-diode characteristics

Model: DZD-1908

Experiment(s):

Determination of knee voltage, zener voltage and forward resistance

Determination of knee voltage, plotting I-V characteristics in forward and reverse bias for a any semi-conductor diode

Specifications

1 . Diode & zener diode characteristics kit

                    Power supply: 0-20 V DC variable & regulated
Voltmeter: Digital DC 3½ digit
Range: 20 V
Resolution: 0.01 V
Current meter: Digital DC 3½ digit
Range selector: Single step
Range: 200 mA or 200 μA
Resolution: 0.1 mA or 0.1 μA
Device mounting: External
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power Consumption: < 50 W
Cabinet: Acrylic body, aluminium bottom


2 . Semi-conductor devices

                    Diode -2
Zener Diode - 2


3 . Patch cords

                    Set of standard 2mm patch cords of different lengths with spare cords
