Reference:

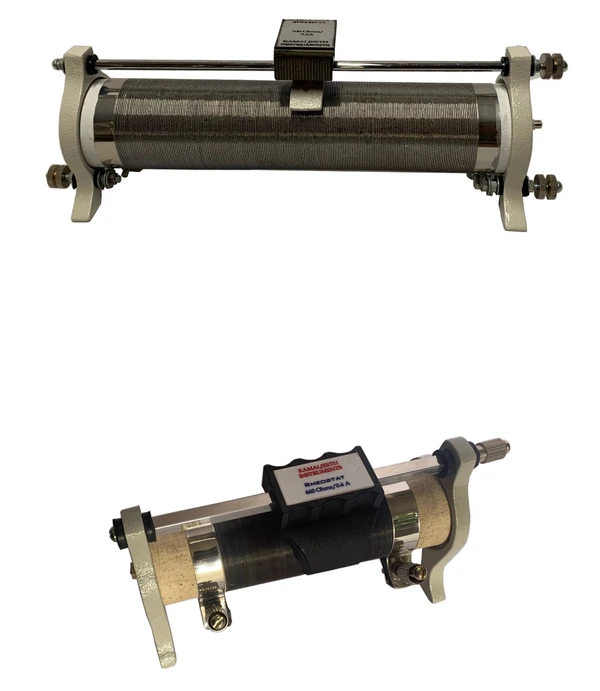

Rheostat

Experiment(s):

Specifications

1 . Common Specification

                    Tube length: 150mm-300mm
Contact: Spring loaded copper blades
Base: Cast iron
Resistance wire : Nihrome
Terminals:  3 (X-0-Y)
Max.current: 5A
Max. resistance :5KΩ


2 . LB-301/232/1

                    Resistance : 10 Ω
max.current :5A


3 . LB-301/232/2

                    Resistance : 100
Max. current : 2.5A



4 . LB-301/232/3

                    Resistance: 200 Ω
Max.current : 1.2A


5 . LB-301/232/4

                    Resistance: 500Ω
Max.Current: 0.6A


6 . LB-301/232/5

                    Resistance :1000
Max.Current: 0.5A


7 . LB-301/232/6

                    Resistance : 2000Ω
Max.Current : 0.3A


8 . LB-301/232/7

                    Resistance : 5000
Max.Current : 0.2A



9 . LB-301/232/C

                    Resistance : customized
Max. Current : 0.1A to 5A
