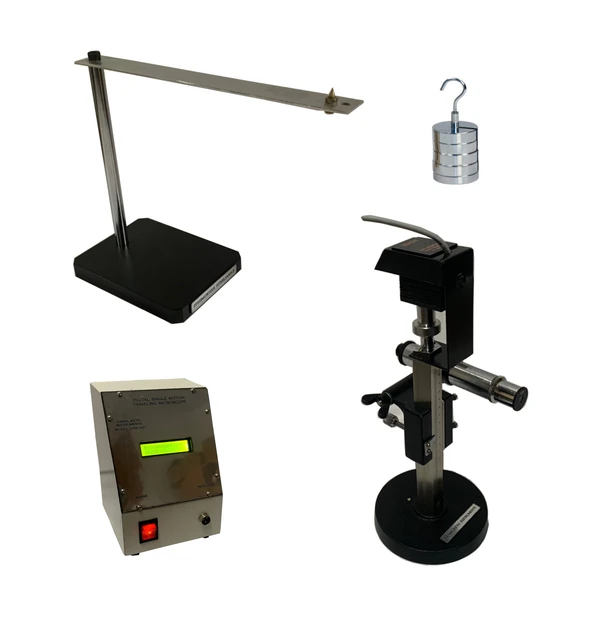

Young's modulus by cantilever method

Model: YMC-201

Experiment(s):

Determination of Young’s modulus of rectangular cross section by cantilever method

Specifications

1 . Cantilever beam

                    Base: Heavy metal base
Beam: Aluminium with pointer at end
Interchangeable beams with varying length, thickness and  materials available on request
Weight set: 7 x 50 g


2 . Digital travelling microscope

                    Number of axis: 1 (Vertical)
Base: Cast iron
Moving parts: Brass
Focus: Adjustable
Free movement: 150 mm
Micrometer movement: 10 mm
Least count: 0.01 mm
Display: LCD
Detector: Resistive type
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <20 W
