Reference: Lab Experiments Journal vol-12, No.2, Page-130

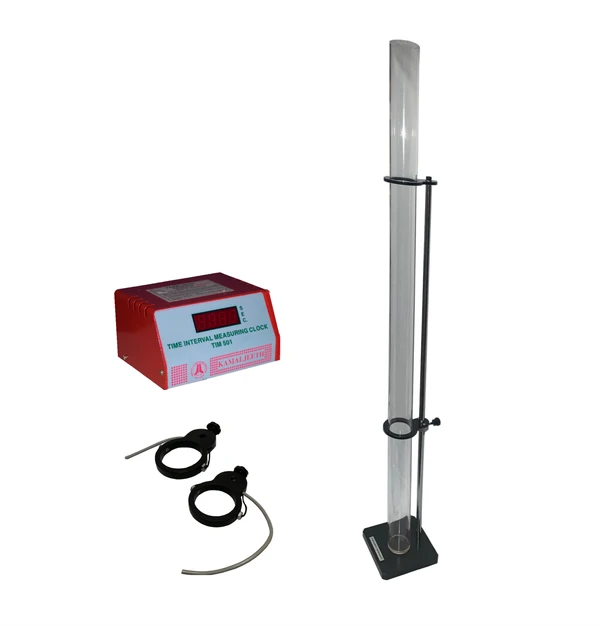

Viscosity by Stoke's method - Using photo gated timer

Model: VSM-201

Experiment(s):

Determination of co-efficient of viscosity

Specifications

1 . Viscosity jar

                    Length: 1000 mm
Material: Acrylic (plastic)
Stand: Heavy cast iron
Fluid: Castor oil/Gylcerin (Not Included)
Objects: Aluminium/ Steel balls


2 . Time interval clock

                    Range: 0-999.9 sec
Resolution: 0.1 sec
Time measuring: Based on inputs from start sensor and stop sensor
Reset: Automatically on interrupting start sensor
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <30 W
