Reference: Lab Experiments Journal for pre-university

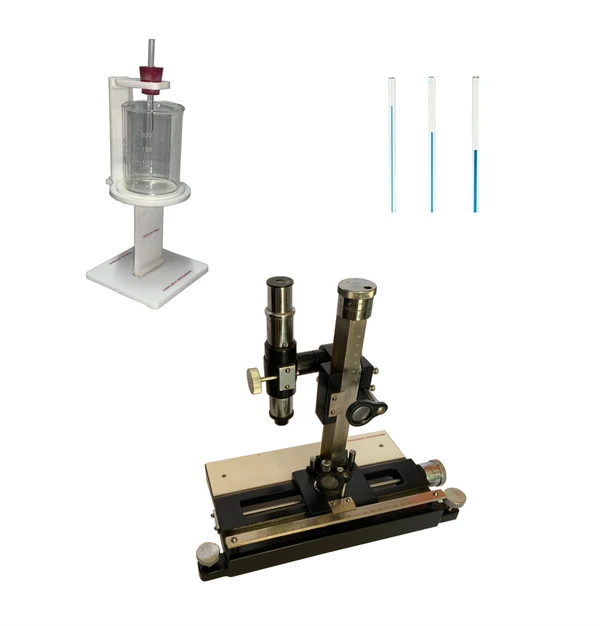

Surface tension by capillary rise method

Model: STC-201

Experiment(s):

Determination of surface tension of liquids

Specifications

1 . Capillary stand and beaker holder

                    Type: Desktop
Material: Acrylic
Reference pointer: Yes
Capillary tube: Changeable
(3 different diameter)
Beaker: Max size 250 ml


2 . Travelling microscope

                    Number of Axis: 2 (x and z axes)
Base: Cast iron
Moving parts: Brass
Focus: Adjustable
x- axis movement: 180 mm
Measurement: Screw gauge  type
Least Count: 0.01 mm
Free movement: Yes
Magnifier: Yes
z- axis movement: 140 mm
Measurement: Screw gauge type
Least count: 0.01 mm
Free movement: Yes
Magnifier: Yes
