Reference:

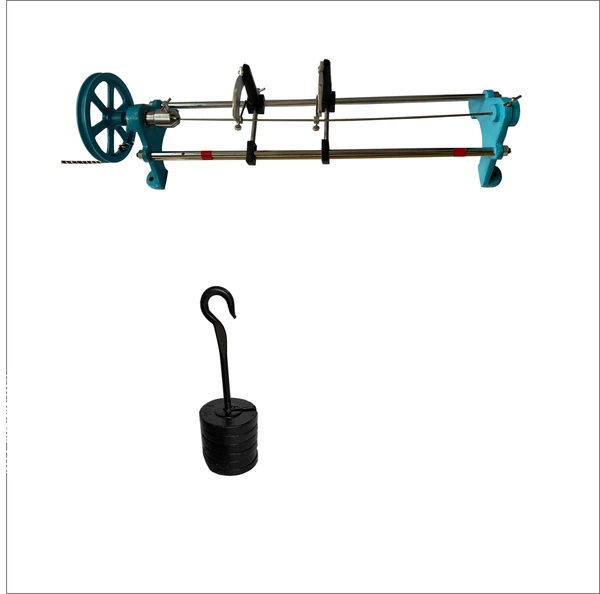

Rigidity modulus by static torsion

Experiment(s):

Determination of rigidity modulus of the material in the form of rods

Specifications

1 . Static torsion apparatus

                    Length: 600 mm
Supporting rods: Graduated in cm
Wheel diameter: 165 mm
Wheel mounted on bearing to reduce friction
Test rod: aprox 550 mm,
with 2 pointers to read angel of deflection
Max test rod diameter: up to 6 mm
Circular scale: Graduated in  degrees 30° - 0 - 30°
Resolution: 1°
Weight set: hung by cord to wheel


2 . Weight

                    Slotted weight 5 x 500 g
