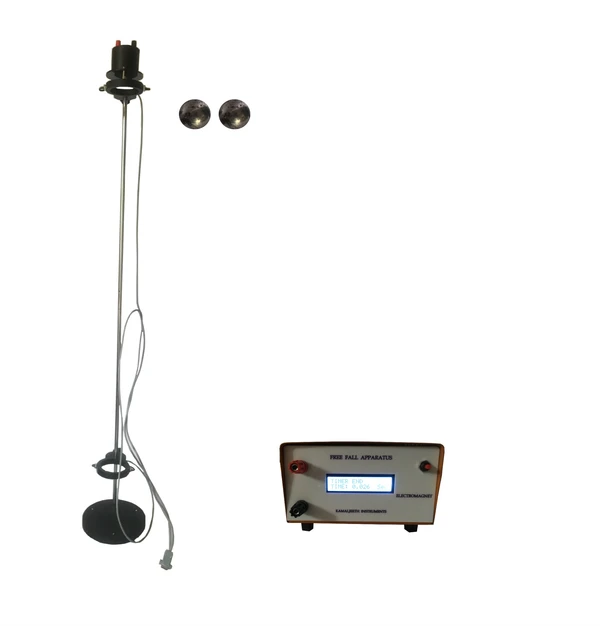

Free fall apparatus

Model: FF-1101

Experiment(s):

Determination of acceleration due to gravity

Specifications

1 . Free fall stand

                    Length: 1100 mm
Object release mechanism: Electromagnetic
Number of sensors: 2
Position adjustment for sensor: Yes
Levelling screw for base: Yes
Distance measurement: manual


2 . Time interval clock

                    Range: 0-999.9 sec
Resolution: 0.1 sec
Time measuring: Based on inputs from start sensor and stop sensor
Reset: Automatically on interrupting start sensor
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <50 W


3 . Objects

                    Spheres (2 nos) of dia 20 mm
