Reference:

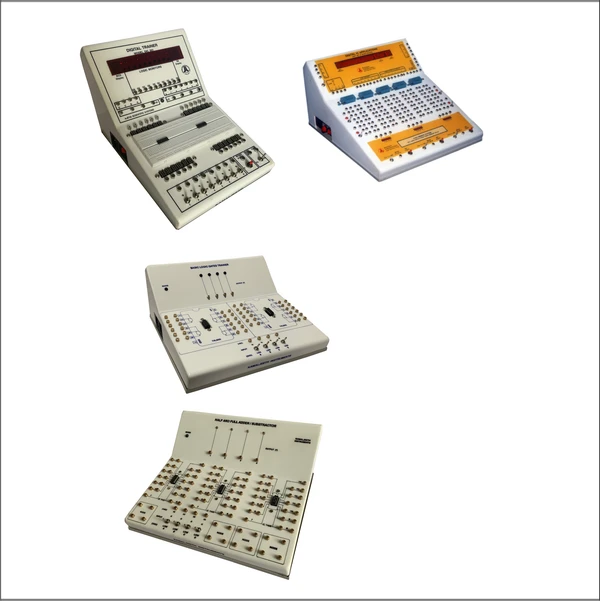

Digital Trainer kits

Model: DIC-1105/602

Experiment(s):

Specifications

1 . General Specifications:

                    Rated Input: 220 V/50 Hz  or 110 V/60 Hz
Power consumption: <30 W
Cabinet: Acrylic with metal  base
High-low voltages: 5 & 0
Connectors: 2 mm-2 mm brass  pin with 6/9/12 inch wire  lengths


2 . DIC-201

                    BCD & CA display, LED logic monitors (8), mono & clock pulse,
with breadboard suitable for all logic circuits


3 . LIC-201

                    CD & CA display, LED logic  monitors, mono & clock pulse (3), with IC ZIF socket suitable for all
logic circuits


4 . LGT-1912

                    Basic logic gate experiments  suitable for construction of basic gates using universal gate ICs


5 . FAS-2004

                    Construction of half/full adder and substracter using logic ICs  with logic monitors (4) and Highlow  inputs (4)


Download Catalog
