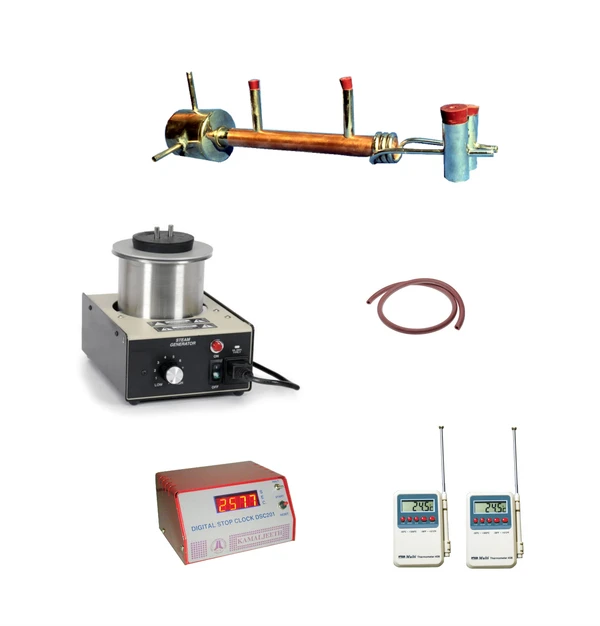

Thermal conductivity by Searle's method

Model: TCM-201

Experiment(s):

Determination of thermal conductivity of copper (metals) by Searle’s Method

Specifications

1 . Searle’s apparatus

                    Solid copper rod with inserts for thermometers
Steam chamber with inlet and drain pipes
Water in and water out hose
Enclosed in insulated wooden chamber


2 . Steam generator with heater

                    Capacity: 1.5 L
Output: Approx. 1 L/hr
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power Consumption: <1000 W
Socket: 5 A, 3 Pin mains cord
Rubber tube: 6 mm, 1 m length


3 . Digital stop clock

                    Range: 0-999.9 sec
Resolution: 0.1 sec
Time measuring: Manual start/stop
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <20 W


4 . Thermometers (2 nos)

                    Type: Digital, probe type
Range: 300 °C
Resolution: 0.1 °C
