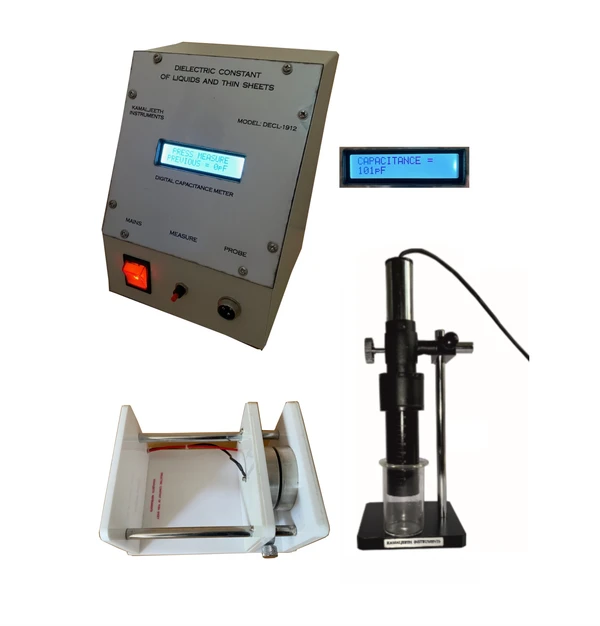

Dielectric constant of liquids & solids

Reference:

Dielectric constant of liquids & solids

Model: DECL-1912

Experiment(s):

Determination of dielectric constant of liquids

Determination of dielectric constant of solids

Specifications

1 . Capacitance meter

                    Range 0-1000 pF
Resolution: 1 pF
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <20 W
Mains socket: 3 Pin with fused protection


2 . Dielectric of solids arrangement

                    Capacitor: Parallel mounted  aluminium discs
Sample thickness:  1 mm to 25 mm


3 . Dielectric of liquids arrangement

                    Capacitor: Concentric aluminium cylinders with cavity for liquid flow
Suitable for non corrosive  inorganic liquids only
Sample quantity: 75 ml

Dimensions
Capacitance meter: 140 mm x 145 mm x 210 mm
Dielectric of solids arrangement: 210 mm x 150 mm x 100 mm
Dielectric of liquids arrangement: 240 mm x 150 mm x 100 mm
