Reference:
Conversion of galvanometer
Model: CGV-501
Experiment(s):
Current sensitivity of a galvanometer
Conversion of galvanometer into voltmeter
Conversion of galvanometer into ammeter

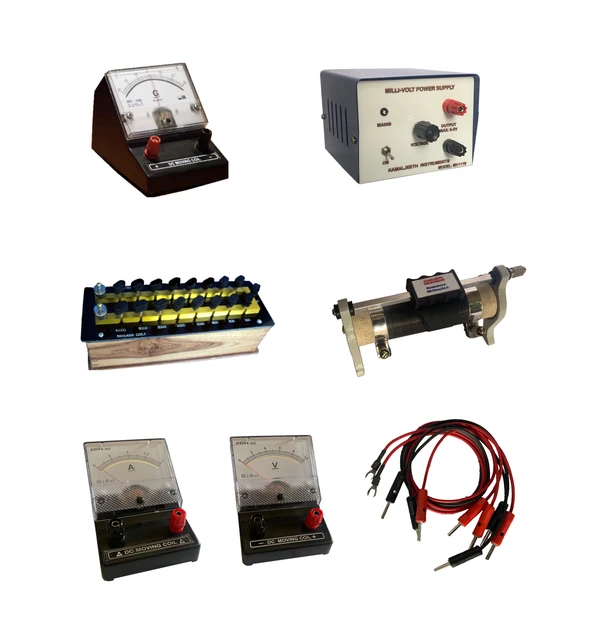

Specifications
1. Galvanometer
Range: 30-0-30 Sensitivity: 2 μA/div
2. Power supply
Voltage: 0-2 V variable Current: Max 1 A Key: Built-in
3. Resistance box
Type: Plug type Resistance coil: Manganin
4. Rheostat
Resistance: 660 Ω
5. Reference ammeter
Range: 2A Resolution: 0.05A
6. Reference voltmeter
Range: 10 V Resolution: 0.1 V
7. Connecting wires
As required for both experiments
