Reference:

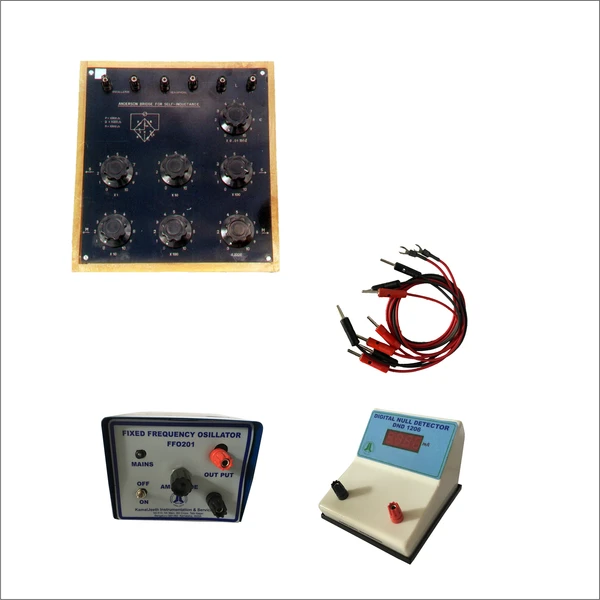

Anderson's bridge

Model: VI-305

Experiment(s):

Determination of unknown inductance

Specifications

1 . Anderson bridge kit

                    Variable resistors: 2
Range: 1 Ω to 1 KΩ
Range: 10 Ω to 10 KΩ
Variable capacitor: 1
Range: 0.01 μF to 0.1 μF


2 . Fixed frequency oscillator

                    Range: Fixed @ 1 KHz
Waveform: Sine
Display: None
Amplitude: Variable
Output impedance: 50 Ω
Output: 4 mm connector
Max: Amplitude: Max 20V P-P
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power consumption: <20 W
Cabinet: Metal


3 . Digital null detector / Galvanometer

                    Range: -1999 to 0 to 1999
Input: 4 mm Connector
Rated Input: 220 V/50 Hz or 110 V/60 Hz
Power Consumption: <20 W
Cabinet: Acrylic
